GWR 9581 (Formerly 5043) Wheelchair and Buffet Progress 2019 January - June.

The Wheelchair accessible Buffet Car is being created by rebuilding the bodyshell of the already much modified GWR 3rd 5043. The finished carriage will be a catering vehicle, and thus should be numbered as such in the 95XX or 96XX series. With the bodyshell design based on GWR Diagram H33, the number of one of these carriages, the long scrapped 9581 was chosen to be carried in service. At a meeting held on 6th November 2018 between the ES Project Manager, 5043 Project Leader and several experienced Fundraisers from the SVRCT and LNER Carriage Group, it was suggested that it would save confusion if 5043 were to become 9581 with immediate effect. With the rebuild more than 50% complete, this was agreed and the Accessible Buffet car is now known as 9581"

RG 10/11/2018

__________________________________________________________________________________

Progress Update 12th May 2019

The past 6 weeks have seen considerable progress on the final quarter side, made urgent by the imminent erection of the working platform to enable the roof to be repaired. Firstly the new doors were delivered to Bewdley by the joiner from Newent. He then spent two days trying to educate us in the finer points of carriage door fitting (not easy as the doors curve and the styles are angled), our technique isn't perfect but has improved considerably. A single, and a pair of double doors are now in place and working correctly, they still need panels and the myriad of fittings that the GWR saw fit to bless them with.

Meanwhile the galvanised steel outer panels were cut, fitted, drilled, pressed and finally screwed in place. All but the panel above the gangway are now finally attached, the end steps and corner capping are on. The floor joists in the entrance vestibule were repaired and this section of floor fitted to create a safe entrance through the end door during the roof repairs, when the side doors will be obstructed by the scaffolding.

Thursday 9th May was something of a red letter day as, besides being the 115th anniversary of City of Truro's alleged 100mph dash down Wellington Bank, our "window man" Dave C completed the rebuild of the 10th and final toplight assembly. This major work took nearly 18 months of dismantling, straightening, plugging, drilling and tapping before they could be assembled into the essential fixed window components that hold the sliding shutters. Meanwhile the composite wood/aluminium frames for the main windows have been made, and the final fitting  and glazing are works in progress. Dave's next job will be to repair 10 pairs of glazed shutters!

Other work has mainly consisted of preparations for the forthcoming roof repairs. 17 steel semi-elliptical carlines are now holding up the roof in place of the mostly life expired GWR oak ones. Great Western fans shouldn't worry however, as they are as close as possible to being replicas of original GWR roof strengthening irons, and are designed to fit to a copy of the woodwork that held the roof up for the whole 90 year life of 5043.  The difference will be that there's now more steelwork, the wood will simply support the ceiling! With the roof securely supported, the remaining internal partitions were removed to storage as they were in the way and needed to be relocated. A superb new set of "shell" ventilators was made for us by South Devon Railway Engineering, and Bill, our painter has been degreasing and priming these to ensure they enjoy a long life on the roof. The replacement rolled lower panel sections that go behind the gutters are also to hand, they'll be pop riveted in as direct replacements of those fitted 30 years ago by the 2857 society who's  excellent repair job we're now copying; with a few tweaks to make the final appearance look more "authentic GWR". More when there's some more progress to shew.

RG 11/5/2019

___________________________________________________________________________________

Progress Update 25th March 2019

Saturday 23rd March was a nice day for a change, and the final section of new side framing was fitted, also repair work on the end frames was completed.

MC 25th March 2019

___________________________________________________________________________________

Progress Update 13th January 2019

By the start of December 2018, the replacement of one half of both bodysides of 9581 was more or less complete, with both sides replaced to the half way point, and the original framing at that end repaired for further service. New steel exterior cladding was fitted to all of this end, and the windows glazed. It also had its new steel roof supporting hoops (carlines) in place, making that end of the roof secure but its cladding had not received any remedial attention. At the other end the original structure of 5043 was still all in place;-one side painted in green primer (the green side) whilst the other (the red side) still bore traces of the BR maroon livery applied by the 2857 Society. During December 2018  repairs to that end framing were carried out to enable the original to be retained, thus both 90 year old ends will be fit for further service!

The weather on the last Saturday before Christmas, 22nd December 2018 seemed promising, and with a reasonable forecast for the following week, the LNER Group commenced the demolition of the remaining portion of the green side. We started by removing the side doors and inserting props to hold the roof up (Photo 1). Further accrow props were added to ensure that the roof was secure before side sections came off (Photo 2). The bottomside here was found to be rotten (Photo 3), and the entire side came off rather more easily than expected! The old bottomside timber was removed and recycled as loco lighting up wood, exposing the top flange of the steel underframe. This needed no more than cleaning and painting to make it fit for further service. Then a replacement hardwood bottomside was fitted (Photo 4). It was jointed to the existing new bottomside (fitted in 2018), mortised and tennoned to the existing underfloor joists and attached with new countersunk 20 mm bolts to the underframe. With a sound base to work from, and in a now practiced operation, the old and decayed cantrail was then replaced with new material. The cantrail forms the top of the side, and thus supports the roof, so its important to take care when doing this!

By the morning of January 7th, we were ready to fit the new side frame, that had been prefabricated a few months previously. By late afternoon on Tuesday 8th the side was all in place, secured and supporting the roof (Photo 5). Since then a number of steel cladding panels have been cut to size, drilled and temporarily fixed in place (Photo 6). Once all are in place, the window apertures will be accurately marked out before the panels are taken off, finally cut to shape, then dimpled to take the countersunk woodscrews that will then finally fasten them in place on 9581.

RG 13/1/19

5. New side frame

6. Making new panels

1. Missing doors with props

2. First side section removed

3. Rotten bottomside

4. Fitting new bottomside

GWR Wheelchair Buffet Progress 2019 July - December

___________________________________________________________________________________

Progress Update 3rd February 2019

Following their first fitting, the galvanised steel panels were accurately marked out so that the windows could be cut to size and shape. Whilst on the carriage, the hole positions were marked on the wooden framework before the panels were removed for final cutting to shape, hole enlargement and "dimpling" (with a special purpose made press). Meanwhile the wooden frame was drilled to accept the panel fastening screws and countersunk to accept the projections at the back of the dimples. The panels were then re-fitted, bedded on mastic with stainless steel woodscrews. Finally the joints in the upper row of panels, which on these GWR carriages are not covered with beading were, in accordance with now standard practice, MIG welded to prevent future movement causing cracking of the paintwork (which not only looks unsightly but leads to water leaks)

Once the welds had been ground flat and treated to prevent rusting, the toplight assemblies were bolted in position, not a quick and easy job as the galvanised panels have to be accurately drilled and countersunk first to accept captive bolts before the toplights were finally permanently fastened with special nuts. At the time of writing, glazing of these windows was in progress.

Whilst this was going on, our carpenters were hard at work preparing to fit the internal wooden cladding, making droplights, glass retaining strips and other odd jobs, whilst Dave, the "toplight man" was starting on the final three needed for the other side of the saloon.

RG 3/2/19.

Side panels shaped, welded and treated

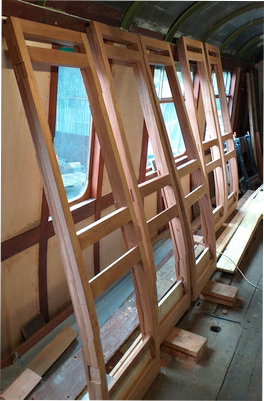

Inside the future accessible saloon with cladding bearers going on.

Shutters first trial fitting

___________________________________________________________________________________

Progress Update 23rd February 2019

With the completion of the window frame fitting and glazing the tarpaulins have been moved over to reveal the completed side ready for the trip to Kidderminster later this week for turning.

MC 23/2/2019

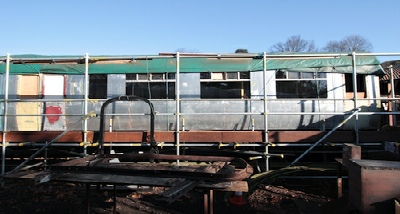

Completed side
